Omni Safety Breaker Regular 2 Poles (15A-60A), SBR-2P/SBRS-2P

FEATURES:

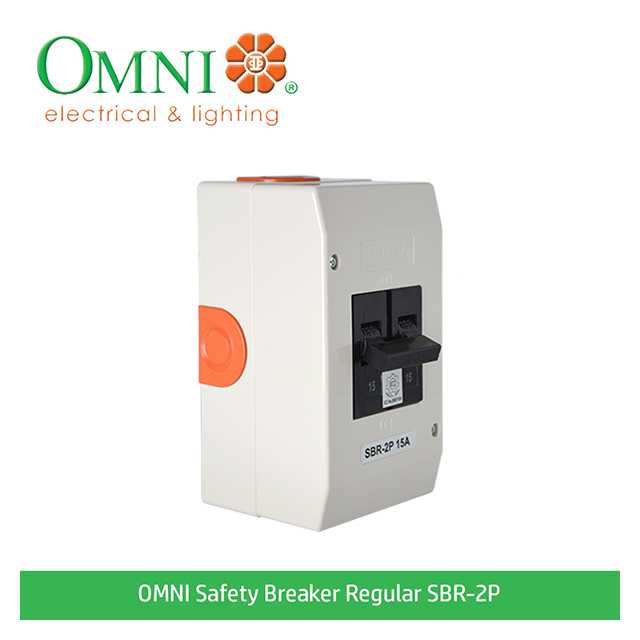

SBR-2P

• NOTE: PLEASE SELECT VARIATION FOR 15A, 20A, 30A, 50A, and 60A
• A proven performance with Omni molded case and mini circuit breakers which offers protection for domestic, commercial and industrial applications.
• If the current goes beyond the capacity of the wire, Omni circuit breaker play its essential part by stopping the electrical current before the wire overheats and cause fire.
• The rated capacity is 10KAIC which means that the breaker can interrupt up to 10000 Amperes without being destroyed.
• The external housing also has a unique design where a provision for opening on each side is ready for the wire to pass through.
• A releasing tool is also provided for installation and removing the circuit breaker from the housing.
• Omni molded case circuit breakers come in plug in type, bolt on type on 2-pole configuration which provides overload and short circuit protection.
• They are suitable for use with 60° or 75° conductors.
• 100% AUTHENTIC

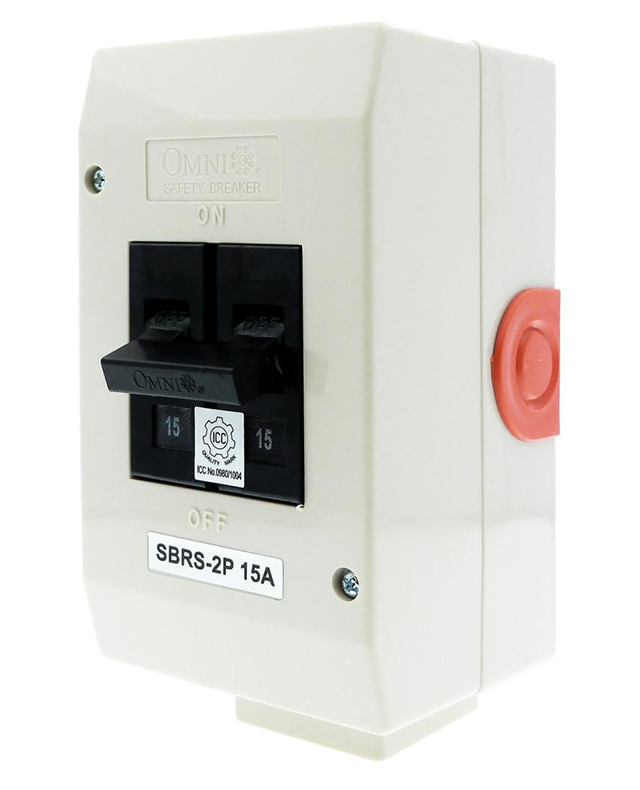

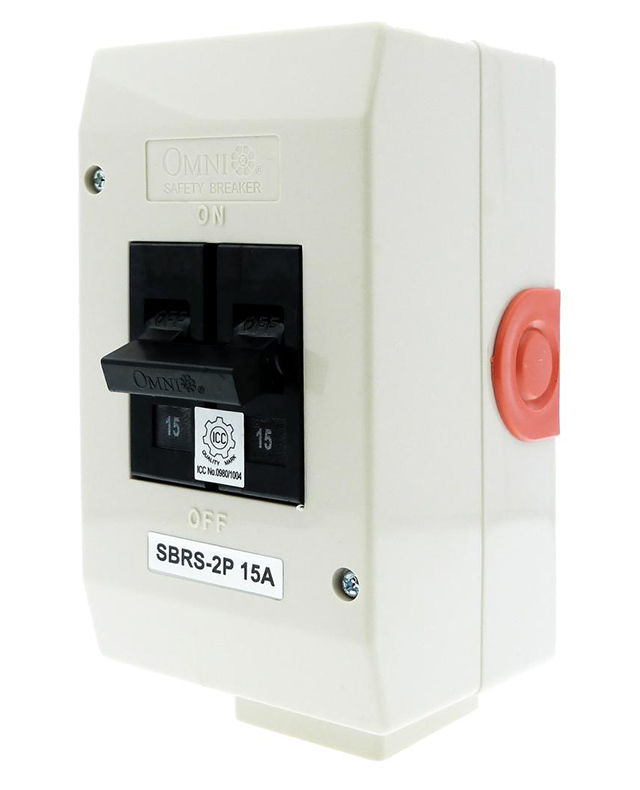

SBRS-2P

• Omni Safety Breaker with Outlet (20A)- Primarily use for airconditioning unit.
• The outer casing is made up of materials that are insulating, heat-retardant, fire-resistant and shock-resistant.
• Users are better protected against electrocution or grounding.
• During overload or short-circuit, breaker will trip automatically, which can be easily reset without the need to open the casing.

SPECIFICATION:

• SKU
  322602455_PH-726710778
• Powerpoint Type
  Circuit Breakers
• Model
  SBR-2P

BRAND: OMNI
