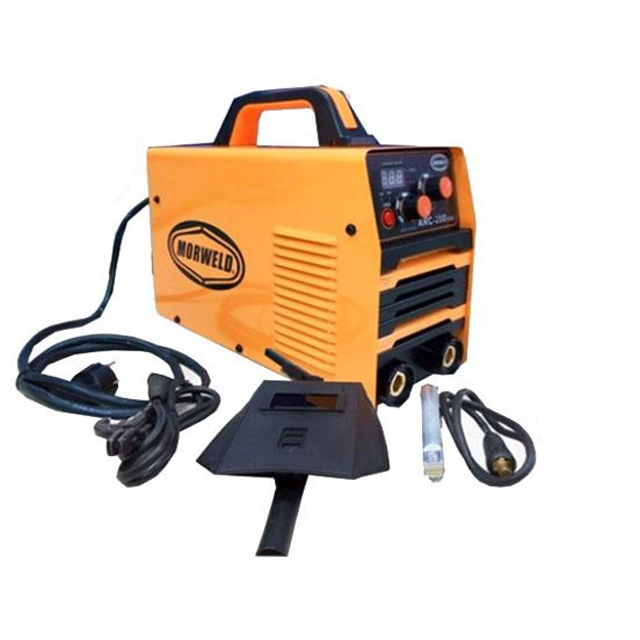

MORWELD Welding Machine DC Inverter Welder - ARC-200

KEY FEATURES:

• 200 Amps Max
• Super Lightweight
• High efficiency, high quality, stable arc.
• Arc power and anti-freeze are standard facilities
• Suitable for welding of low carbon steel, cast iron, low alloy and stainless steel
• Shockproof Casing for the Heavy Duty Environments
• Made in Taiwan

Specifications:

Power Voltage(V): 1 Phase AC220V ±10%
Frequency (Hz): 60
Rated Input Current (A): 41
No Load Voltage (V): 85
Output Current (A): 20-180A
Rated Output Voltage (V): 28
Duty Cycle (%): 80
No-load loss (W): 40
Stick Diameter (mm): 2.00-3.2
Efficiency (%): 80
Power Factor: 0.73
Insulation Grade: F
Housing Protection Grade: IP28
Weight (kg): 8.7
Dimensions (mm) 342 x 140 x 229
