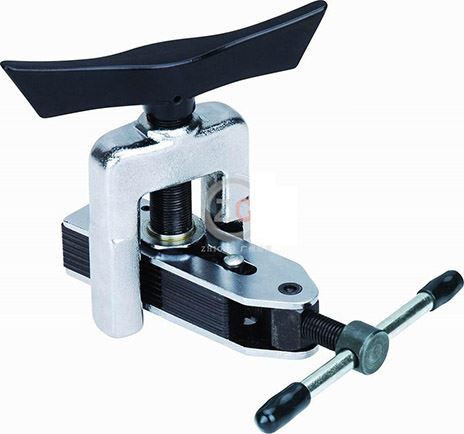

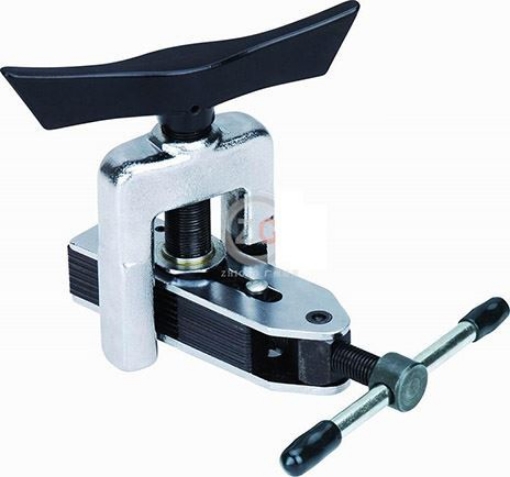

Asian First Brand Flaring Tool Set - CT525 For S/S Tubing - Metric and Inches Size

FEATURES

For use with soft copper, aluminum and brass tubing. Faceted, hard chrome-fmished cone rolls out perfect 45~ flares above die block - then automatically burnishes flare face. Original wall thickness is maintained at base of flare. New slip-on yoke permits use in tight quarters where there is little space between nut and tube end. Larger handle, with better leverage, and precision threads on feed screw make flaring effortless. Heat treated dies firmly grip tubing. Satin chrome and black finish.

SPECIFICATIONS

Insert tubing into adjustable opening of tube holding assembly. Position end of tubing approximately 1/8" above the surface of holder.

Tighten Clamp screw approximately 1/2 to 3/4 of a turn beyond free travel postition to secure tubing.

Be certain flaring cone surface is oiled. Slip yoke over tube holding assembly centerring on tubing.  Twist yoe clockwise to lock in position. Turn yoke handle clockwise to flare.

For 3/16" to 5/8" & 5mm ti 16mm O.D.
