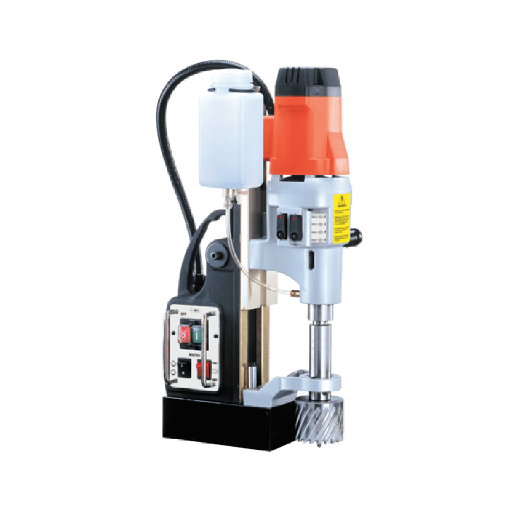

4 Speed Magnetic Drilling Machine MDS750-4

Manufacturer: AGP
Be the first to review this product
4 Speed Magnetic Drilling Machine
SKU: MDS750-4
Vendor: Premier Screwking Bolts & Nuts Corp.
Availability: In stock
₱232,300.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: 3-5 days

FEATURES:

  • 2 000 W motor with overload protection
  • Four speed mechanical gearbox
  • MT3 spindle for a wide range of cutting tools
  • Unique through-the-spindle cutting fluid feed system
  • Reversing switch for tapping

SPECIFICATIONS:

Model MDS750/4
Power Input 110-120V:1700W, 220-240V:2000W
Voltage 110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No/Full Load Min-1 Speed 1 150 / 90
  Speed 2 200 / 120
  Speed 3 300 / 180
  Speed 4 380 / 230
Max. Capacity Dia. X Depth of Cut
75 mm x 50 mm (3" x 2")
  Dia. X Depth of MT3 Twist Drill Bit 32 mm x 150 mm (1-1/4" x 4-7/8")
  Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit 16mm x 110mm (5/8" x 4-1/2")
  Dia. X Depth of Taps 25.4 mm x 40 mm (1" x 1-9/16")
Magnetic Adhesion 32,000 N
Overload Protection With
Net Weight 27kg (59.52 Lbs)

Standard Accessories: Wrench M8, Hex.key, M2.5 & M4, Chip Guard Kit, Coolant tank Kit, Safety Chain, Drift, Wrench M17
